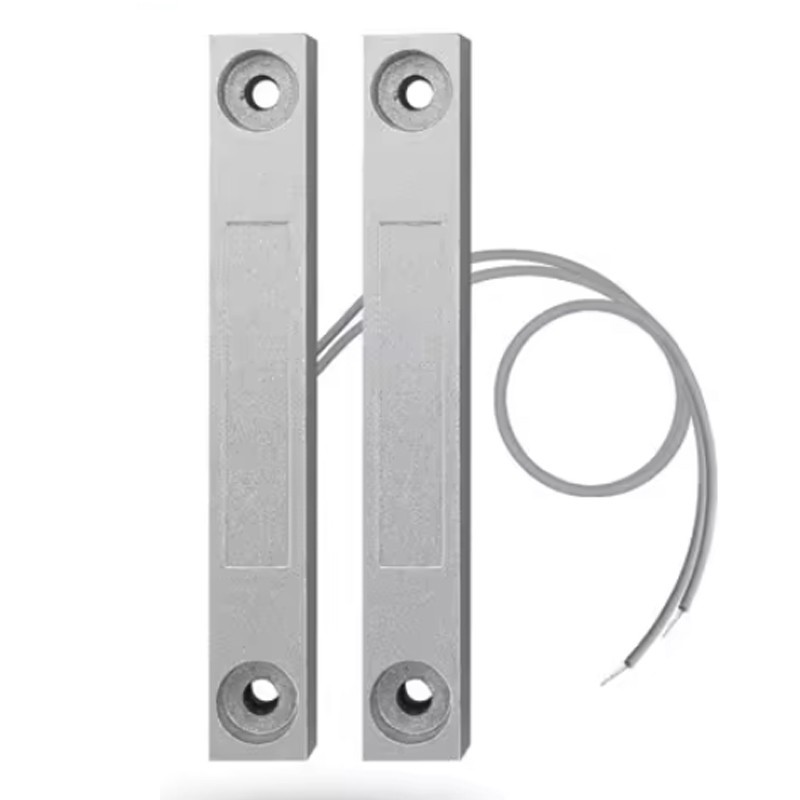

Tuya Wired Magnetic Sensor for Doors and Windows

Tuya-WD101

NC Magnetic Contact for Metal Door DC12V 23A

€6.99
Tax included
Delivery in 24/48 hours
Quantity

Close
Description

Tuya Wired Metal Magnetic Sensor for Doors and Windows

Discover the Tuya wired magnetic contact, the ideal solution to improve the security of your metal doors and windows.

Designed for reliability and durability , this sensor is perfect for alarm and access control systems

residential, commercial and industrial environments. Enhance the security of your home or office with the sensor

Tuya wired magnetic. Buy now for long-lasting peace of mind and reliable protection against unwanted access .

Reliable and Versatile

The Tuya sensor operates with a normally closed ( NC ) contact mechanism. When the magnet is in proximity,

the circuit remains closed and the system is in a state of rest. As soon as the magnet moves away , for example in the case of

opening a door or window , the circuit is interrupted, immediately activating the alarm .

This function guarantees accurate and timely control of any intrusions or unauthorized openings .

Universal Compatibility

Compatible with all wired systems, the Tuya sensor can be easily integrated with any control system

accesses or existing burglar alarm . Its versatility makes it suitable for installation on any material, including

aluminium, wood and PVC , thanks to its surface mount design.

Simple Installation

Installing the sensor is quick and easy. Make sure the magnet is well aligned with the switch part for functionality

optimal. Furthermore, the sensor's resistance to external magnetic interference ensures stable and error-free operation.

Compatible with Our Smart Alarm Kits:

Tuya-PG500 - Tuya 30A-TY-4G - Tuya G30-4G - Tuya WG107T-4G - Tuya PG109T -4G

Compatible with Our Access Control Systems:

db-83225 - db09 -  db10 - CH1 - HD1-ID+IC - h102 - VC4-F -  S7-BT - SF7-BT - CHD3

HF4-EM+Mifare - H3-EM+Mifare - VC1 and many more...

Features and Functionality:

  • Connection mode : NC (Normally Closed).
  • Specialized for metal doors and windows , but suitable for various types of frames.
  • Easy outdoor installation with all accessories included.
  • Weatherproof design for long-lasting and reliable use.

Installation Instructions for the Tuya Wired Magnetic Sensor

  • Preparation : Start by drilling a 10mm diameter installation hole in the desired location.
  • Magnet Placement : The magnet must be installed while the door, window or drawer is in the closed position. This ensures that the sensor works correctly when the opening is closed.
  • Installation of Components. Magnetic Part: Mount this part on the moving side of the door or window. Switch Part: Attach it to the adjacent fixed frame. Make sure the magnet and switch are perfectly aligned to ensure maximum efficiency.
  • Avoid Magnetic Interference : Place the magnet away from sources of strong magnetic interference, such as transformers and large electric motors. This prevents malfunctions or detection errors.


Product Details
Tuya-WD101

Data sheet

Alimentazione
DC12V
Working temperature
from -10°C to +50°C
Dimensions
104x14.8x15.2 mm
Item weight
105g
Communication Protocol
Wired
Magnetic Distance Control
20~30mm
Interface
NC/COM
