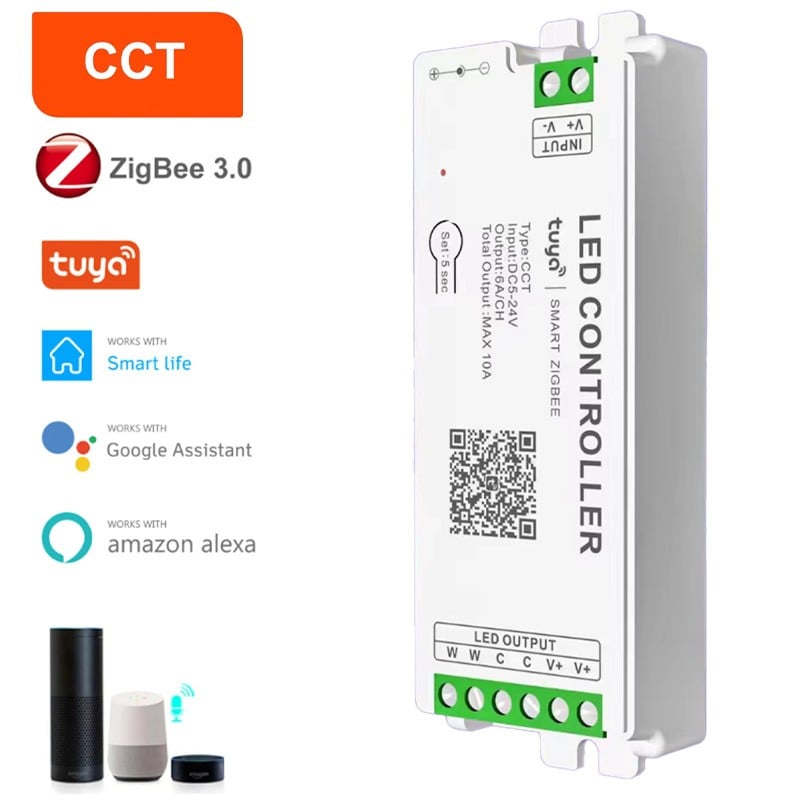

Tuya 4 Zone Controller for Smart Zigbee LED Strip

Tuya-DY36602

Zigbee Controller for LEDs 5-24V Single Color CCT RGB RGBW RGBCCT

Type
€19.90
Tax included
Delivery in 24/48 hours
Quantity

Close
Description

Tuya Smart Zigbee Controller for Monochromatic LED Strips CCT RGB RGBW RGBCCT 5-24V

Make your lighting smart with the Zigbee 4 Zone Controller for LED Strips, perfect for those who want complete control

advanced and versatile single-color, CCT, RGB, RGBW or RGBCCT LED strips, with power supply from 5 to 24V and up to 10A.

Connected to the Tuya Smart or Smart Life app, this controller allows you to manage your LED strips remotely via

Zigbee connection, offering a reliable and stable solution even for complex environments. Thanks to the compatibility

With Amazon Alexa and Google Home , you can set scenes, adjust brightness, change colors and activate

lighting just with your voice. Transform your home environment, in just a few taps!

Advanced and Custom Control

Choose from five versions: Single Color, CCT, RGB, RGBW and RGBCCT . Personalize the lighting of your home or office

according to your preferences and design needs , precisely controlling light intensity and color, for each area.

Remote Control and Lighting Groups

With Zigbee connection and Tuya Smart or Smart Life app, control your LED strips wherever you are.

Organize lighting into groups or zones , making it easy to manage lights in different rooms or areas,

both simultaneously and separately, for lighting that is always suitable for the occasion.

Control via the app requires a Zigbee Hub or other compatible Smart Home systems with the Zigbee 3.0 protocol.

Voice Control

Use voice commands through Amazon Alexa or Google Home to adjust brightness, color temperature and color

LED strips. A simple voice command is all it takes to create the perfect atmosphere without lifting a finger.

Music Sync

With the music sync function, liven up any special event: the lights move to the rhythm of your

favorite music, creating a dynamic effect for parties , dinners and special evenings .

Smart Programming and Timer

Set custom programs directly from the app, to have the ideal lighting when you need it,

saving energy and creating an automated routine without manual intervention.

Remote Controls and Control Panels

The Tuya Zigbee Controller is compatible with Tuya Bluetooth Remote or Panel for more convenient control.

up to 30 meters away, allowing you to manage the lights of each area without depending on your smartphone.

Power and Installation Specifications

Compatible with 5-24V DC power supplies, it can be easily installed thanks to the jack connector or stripped cables.

With an output of up to 6A per channel (10A total), it supports most LED strips available in our

Store , offering fast and secure installation.

Features and Functionalities:
  • Extremely low power consumption and energy saving .
  • The brightness and color of the light strip can be adjusted by Tuya Smart or Smart Life APP control.
  • In smart devices, the color of the light changes with the rhythm of the music .
  • Supports a variety of smart speakers such as Amazon Alexa and Google Home.
  • Set the scene and automatically adjusts the room lighting scene based on the environment.
  • It can be used in entertainment venues , parties, weddings, bars, dance halls, cinemas, entertainment venues or in cars, etc.
  • Daily rhythm function: Simulates changes in light brightness and color temperature during the day, CCT (2CH) and RGBCCT (5CH) only

Product Details
Tuya-DY36602

Data sheet

Material
ABS+PC
Working temperature
-20℃-60℃
Voice Control
Amazon Alexa, Google Home and Siri
Mobile application
Tuya Smart or Smart Life
Dimensions
113x39x20 mm
Communication Protocol
Zigbee 3.0
Communication Protocol
Bluetooth
input voltage
5-24 VDC
Output voltage
DC5-24V
Bluetooth protocol
Beacons
Bluetooth transmission distance
About 30 meters
Remote control
Not included
Output current
6A Channel - Max 10A Total
LED Types Supported
Monochrome
LED Types Supported
CCT White Variable
LED Types Supported
RGB
LED Types Supported
RGBW
LED Types Supported
RGB+CCT

Specific References

ean13
8320751629513
upc
832075162951
mpn
Tuya DY36602
Manuals
Download
User Manual Tuya 3660

User Manual Expert4house Tuya Controller 4 Zone per Strip Led Smart Zigbee

Download (111k)
