Can you remotely control your heating or cooling with your smartphone with an economical but effective solution?

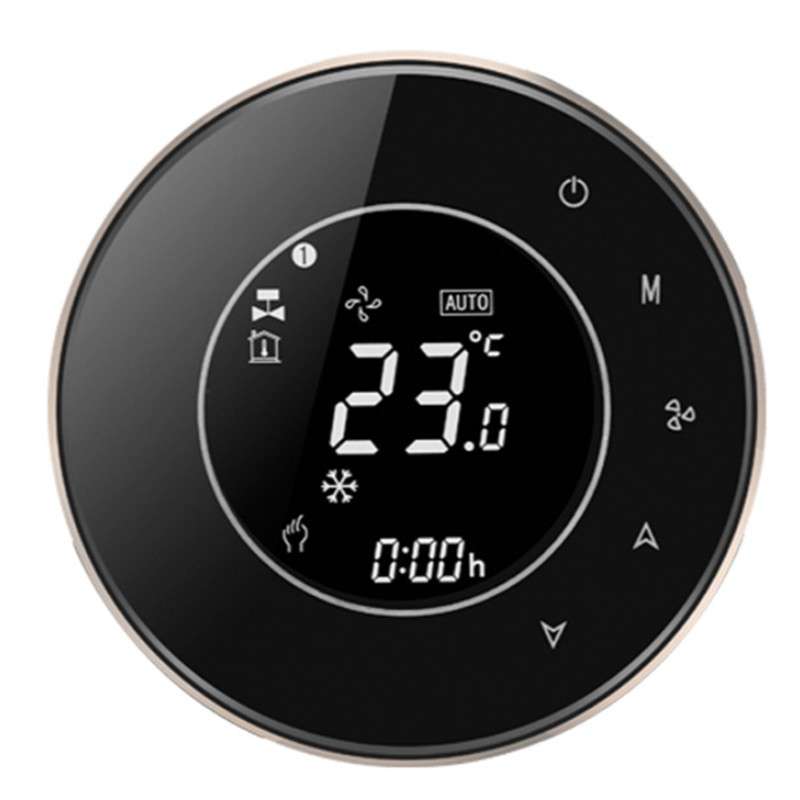

The answer is the Beca BAC-6000ALWN WiFi thermostat
It also works with Google Home and Alexa. Smart Life compatible.
Main functions of the thermostat:
- gas boiler chronothermostat
- large circular LCD display available in black and white
- 220 V alternating current power supply
- configurations stored even in the event of a power failure
- adjustable temperature between 5 ° C and 35 ° C
- temperature measurement accuracy ± 1 ° C
- Internet connection through the WiFi network of your home
- remote control via smartphone with dedicated My Smart Thermostat app, available for both Android and iOS compatible with Google Home, Alexa and IFTTT
On the large round LCD display it is possible to manage all the functions as in a traditional chronothermostat, in particular: weekly programming differentiated between 5 weekdays and 2 holidays 6 time bands with relative temperature setting for each day thermostat block: to block the '' access to the functions on board the thermostat
Made of polycarbonate and flame-retardant ABS, therefore flame-proof.
The product has a modern but at the same time inconspicuous design, so as to adapt to any type of environment.
Circular shape with black and white frame.
The dimensions are 90x90x38 mm for 135 grams of weight. On the elegant touch-type frame we find the various keys for switching on, choosing mode, timer and navigating through the menus (up arrow and down arrow). The panel is comfortable to use and responds well to commands. In the center, the LCD display with backlight, where you can easily read information on the selected mode, system status, set temperature and time. Viewing is also excellent in the dark.
There is a data memory function when there is no power.
Once the installation is complete, you can control the home system directly from the thermostat or from your smartphone, using a special app and WiFi connection.
Thanks to the app, you can control the thermostat even when you are away from home. It is therefore possible to check the status of the system, turn it on or off, program it and manage it just as if we were at home.
This ensures not only high safety, since we can check if the system has been switched off once we are away from home, but also a lot of convenience, since we can also switch it on remotely when we are about to return.
The regulation ensures excellent precision, since the system temperature is never lower or higher than 0.5 ° C compared to those set on the thermostat.
Compatible with voice commands with Amazon Echo, Goog Home, IFTTT.
System operation diagram and wiring diagram (2 pipes):
Two pipes use the same piping system for cooling and heating.
It can save on investment costs and reduce maintenance.
It is a control method commonly used in air conditioning systems, but it cannot meet the needs of annual air conditioning systems.
The principle of operation of the two pipes: chilled water from the freezing station and hot water from the heat exchange station are combined on the main air conditioning water supply pipe, and cold and hot water are used in the same pipeline through the changeover valve.
Technical features |
|
|---|---|
| Sensor | NTC |
| Precision | ± 1 ℃ |
| Diet | 95 ~ 240 VAC, 50 ~ 60HZ |
| Temperature range | 5-35 ℃ |
| Fan relay amplifiers resistance: 5A | Inductive: 3A |
| Resistance of valve relay amplifiers: 5A | Inductive: 1A |
| Current Consumption | <1.5W |
| Installation | 86X86mmx13.3 or 60mm European round box |
| Timing error | <1% |
| Material | PC + ABS |
| Operation diagram | 2 Pipes |
| Product Class | IP30 |
| Wire terminals | 2 x 1.5 mm² or 1 x 2.5 mm² |
| Modbus | Yes |
